Hardened & Tempered C80

THESE STEEL STRIPS ARE POPULARLY KNOWN AS HARDENED AND TEMPERED SPRING STEEL STRIPS, SPRING STEEL STRIPS, HARDENED STEEL STRIPS, BLUE TEMPERED STRIPS, SPRING STRIPS.

These are high carbon steel strips with Martensite grain structure and high tensile strength. It is produced by passing the strip through a heating furnace and quenching in salt baths. Parts made from this strip have uniformity in hardness, flatness and shape as compared to those made from annealed strips which are then hardened and tempered in batches.
These strips are stocked with us in C80 grade as per the standard sizes listed below. We also have certain sizes in c98 grade. It can also be supplied against a back order in C75, 74Ni8 and 75Cr1. These strips are supplied against various options as per customers requirement. It can be slit edges, rounded edges. Surfaces can be bright polished, unpolished, grey, blue polished, bronze polished

PROPERTIES


Properties of Hardened & Tempered C80 Chemical composition by weight
CARBON 0.75 - 0.85%
MANGANESE 0.6 - 0.90%
SILICON 0.0 - 0.35%
SULPHUR 0.35% MAX
PHOSPHOROUS 0.35% MAX

FORM OF SUPPLY


Hardened & Tempered strips can also be made to meet your specific requirements in relation to edge type,
width tolerance, and surface finish.

.
  Usually in coils, thicker strips can also be supplied in cut to length and levelled strips
  Edges are slitted
  Coil ID 300-500mm as per mutual agreement with buyer
  Coil weight as per mutual understanding with buyer
  Surface finish is bright suitable for electroplating

Standard Sizes


This table is for reference only. Actual sizes keep changing from time to time according to market trends.
In case you don't see what you want, please get in touch with us

GRADE THICKNESS WIDTH LENGTH HARDNESS SURFACE FINISH
C80 3.0MM 300MM 2050MM 44-47 HRC Bright
C80 2.50MM 300MM 3050 44-47 HRC Bright
C80 2.0MM 200MM Coils 44-47 HRC Bright
C80 2.0MM 154.2MM Coils 44-47 HRC Bright
C80 1.80MM 154.2MM Coils 44-47 HRC Bright
C80 1.60MM 154.2MM Coils 44-47 HRC Bright
C80 1.50MM 154.2MM Coils 44-47 HRC Bright
C80 1.40MM 154.2MM Coils 44-47 HRC Bright
C80 1.40MM 127MM Coils 44-47 HRC Bright
C80 1.20MM 154.2MM Coils 44-47 HRC Bright
C80 1.20MM 127MM Coils 44-47 HRC Bright
C80 1.20MM 100MM Coils 44-47 HRC Bright
C80 1.0MM 200MM Coils 44-47 HRC Bright
C80 1.0MM 150MM Coils 44-47 HRC Bright
C80 0.90MM 200MM Coils 44-47 HRC Bright
C80 0.80MM 200MM Coils 44-47 HRC Bright
C80 0.80MM 152.4MM Coils 44-47 HRC Bright
C80 0.70MM 150MM Coils 44-47 HRC Bright
C80 0.60MM 165MM Coils 44-47 HRC Bright
C80 0.50MM 200MM Coils 44-47 HRC Bright
C80 0.50MM 150MM Coils 49-51 HRC Bright
C80 0.50MM 150MM Coils 49-51 HRC Blue
C80 0.40MM 150MM Coils 49-51 HRC Bright
C80 0.40MM 150MM Coils 49-51 HRC Blue
C80 0.30MM 150MM Coils 49-51 HRC Bright
C80 0.30MM 150MM Coils 49-51 HRC Blue
C80 0.25MM 150MM Coils 49-51 HRC Bright
C80 0.25MM 150MM Coils 49-51 HRC Blue
C80 0.20MM 150MM Coils 49-51 HRC Bright
C80 0.20MM 150MM Coils 49-51 HRC Blue

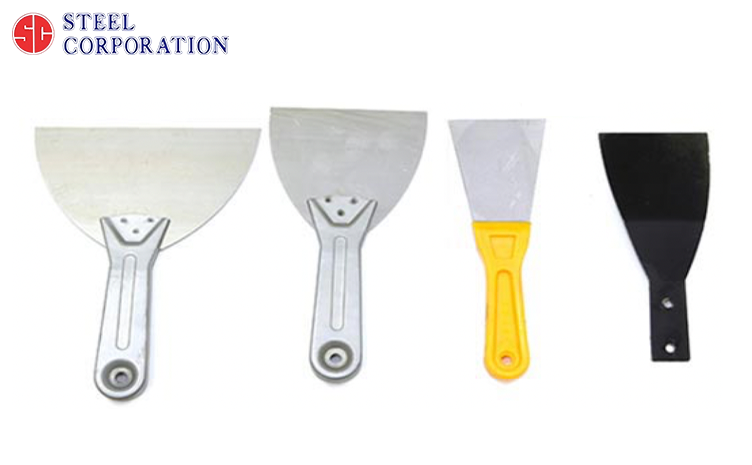

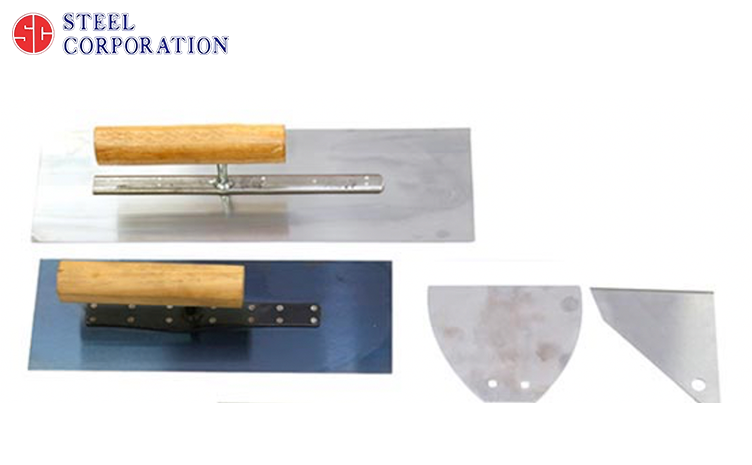

APPLICATIONS

. .
  BANDSAW BLADES   CLUTCH PLATES
  HORN DIAPHRAGM   CUTTING BLADES
  AGRICULTURAL IMPLEMENTS   BELLEVILLE WASHERS
  WAVE WASHERS   TEXTILE DROP PINS
  COIL SPRINGS   POWER SPRINGS
  ROLLING SHUTTER SPRINGS   FLAT SPRINGS
  WEAR PLATES   CONCRETE TROWEL PLATE


For more information, please contact us on +91 9769522775
