COLD ROLLED ANNEALED EN47

EN47 IS SUPPLIED IN A COLD ROLLED CONDITION AND IS ALSO KNOWN AS CHROME VANADIUM STEEL. IT IS A SPRING STEEL SUPPLIED IN ROLLED CONDITION. EN47 SPRING STEEL IS SUITABLE FOR OIL HARDENING AND TEMPERING.

When hardened EN47 offers excellent toughness and shock resistance which make it a suitable alloy spring steel for parts exposed to stress, shock and vibration. It is also called as in various standards as 51CrV4 or 50CrV4 or DIN 1.8159 AISI
EN47 spring steel is a high carbon steel containing manganese, silicon, and chromium. This steel is known for its high strength, good wear resistance, and excellent toughness.
This grade offers good bending and forming properties and is less sensitive to surface decarburisation while heat treatment it also resists deformation during hardening and tempering. We keep a few thickness in stock however we can supply for it against a specific request with a minimum order quantity and lead time for delivery depending on the requirement.

PROPERTIES


Properties of EN47 grade cold rolled annealed steel strips Chemical composition by weight
CARBON 0.45 - 0.55%
MANGANESE 0.50 - 0.80%
SILICON 0.10 - 0.35%
SULPHUR 0.05% MAX
PHOSPHOROUS 0.05% MAX
CHROMIUM 0.9 - 1.2%
VANADIUM 0.1 - 1.2%

FORM OF SUPPLY

.
  Usually in coils, thicker strips can also be supplied in cut to length and levelled strips
  Edges are slitted
  Coil ID 300-500mm as per mutual agreement with buyer
  Coil weight as per mutual understanding with buyer
  Surface finish is bright suitable for electroplating

APPLICATIONS

. .

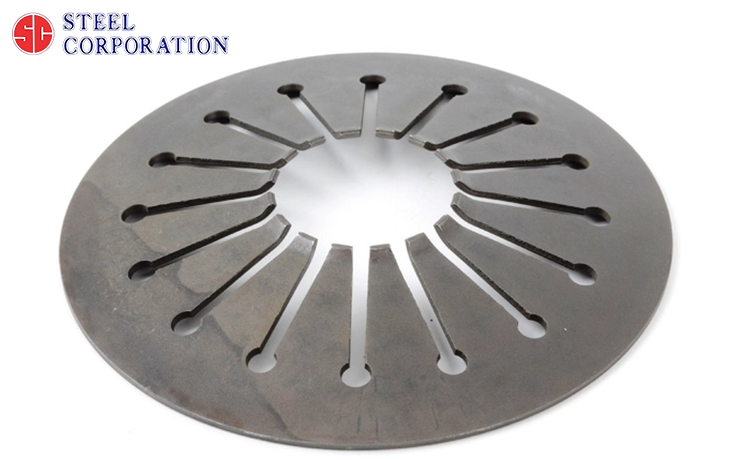

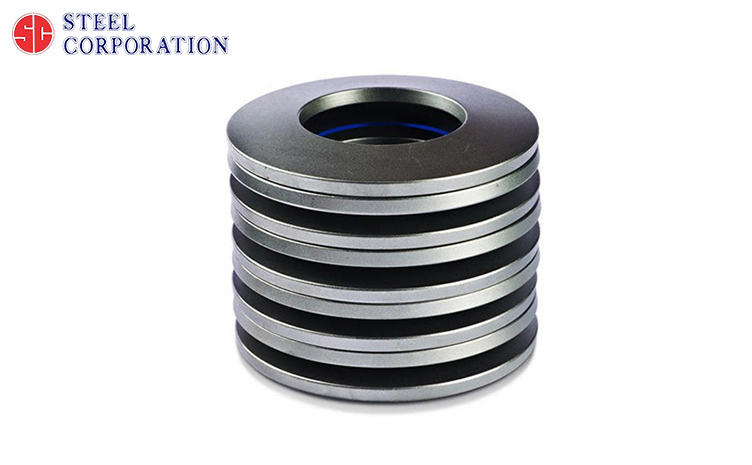

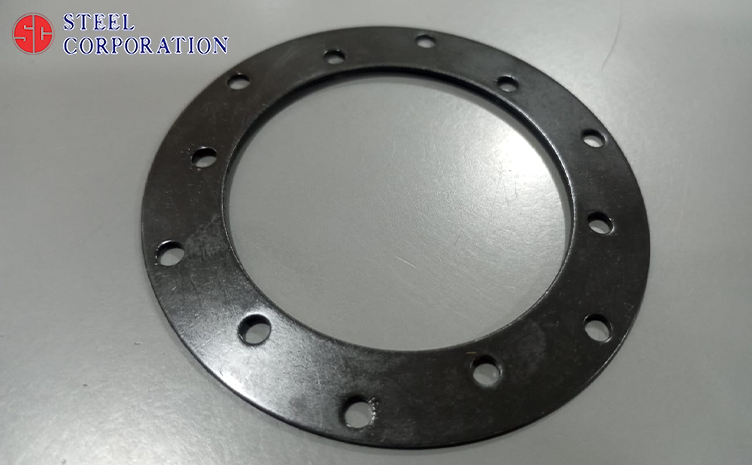

  CONICAL WASHERS   SAFETY DISC WASHERS
  CLUTCH DIAGRAM   SLOTTED DISC WASHERS
  CUSHION SPRINGS   HOSE CLAMPS
