COLD ROLLED ANNEALED C55

THIS IS A MEDIUM CARBON COLD ROLLED STEEL STREP WITH A VERY HIGH YIELD STRENGTH. THIS ALLOWS OBJECTS MADE OF THIS STEEL TO RETURN TO THEIR ORIGINAL SHAPE DESPITE SIGNIFICANT BENDING OR TWISTING AFTER HARDENING AND TEMPERING.

Usually in soft annealed condition but can also be supplied in temper rolled hardness in range between 200-300Hv ( band range is +/-40 Hv )
This grade of steel strip is used where fatigue values and elastic limits are not critical, is used for applications in which high strength, hardness and wear resistance are important. This grade of steel strips has good forming, blanking and bending properties.

PROPERTIES


Properties of C55 grade cold rolled annealed steel strips Chemical composition by weight
CARBON 0.50 - 60%
MANGANESE 0.60 - 0.90%
SILICON 0.0 - 0.35%
SULPHUR 0.025%
PHOSPHOROUS 0.025%
Physical Properties of C55 grade cold rolled annealed steel strips
HARDNESS IN ANNEALED CONDITION 200Hv Max
YIELD STRENGTH 270 N/MM2
ELONGATION 30% Min
TENSILE STRENGTH 590 N/mm2

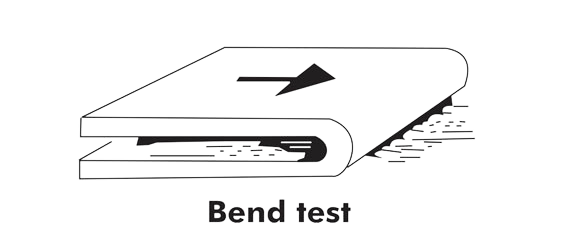

Bend test When bending maintain radius
THICKNESS GRAIN WISE AGAINST GRAINS
For thickness 4.00 mm to 2.50 mm r=2t not advised
For thickness 2.30 mm to 1.20 mm r=1t not advised
For thickness 1.0 mm to 0.50 mm r=0t r=1t
For thickness 0.45 mm to 0.20 mm r=0t r=0r
'r' stands for radius of bend and 't' for thickness of strip. Other Properties
bendtest

FORM OF SUPPLY

.

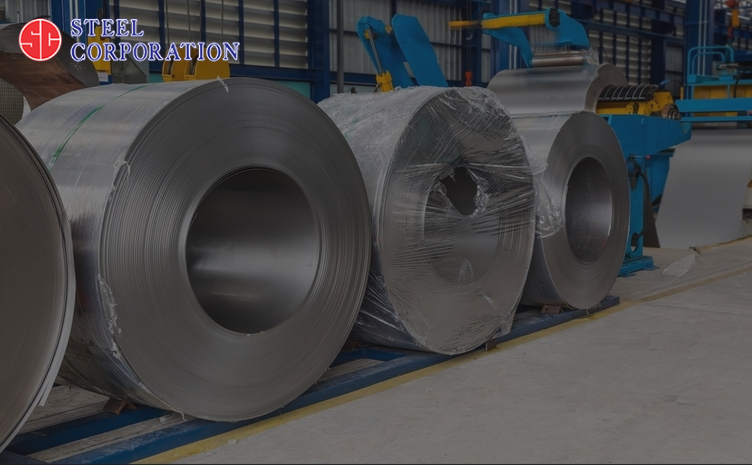

  Usually in coils, thicker strips can also be supplied in cut to length and levelled strips
  Edges are slitted
  Coil ID 300-500mm as per mutual agreement with buyer
  Coil weight as per mutual understanding with buyer
  Surface finish is bright suitable for electroplating

STANDARD THICKNESS

. . .
  4.50mm + 0.07mm   3.50mm + 0.05mm   3.20mm + 0.05mm
  2.80mm + 0.05mm   2.60mm + 0.04mm   2.50mm + 0.04mm
  2.30mm + 0.04mm   2.00mm + 0.04mm   1.80mm + 0.04mm
  1.75mm + 0.04mm   1.50mm + 0.03mm   1.48mm + 0.03mm
  1.20mm + 0.03mm   1.0mm + 0.03mm   0.98mm + 0.03mm
  0.90mm + 0.03mm   0.80mm + 0.03mm   0.70mm + 0.03mm
  0.60mm + 0.03mm   0.50mm + 0.02mm   0.45mm + 0.02mm
  0.55mm + 0.02mm   0.40mm + 0.02mm   0.30mm + 0.02mm
  0.25mm + 0.02mm   0.20mm + 0.02mm

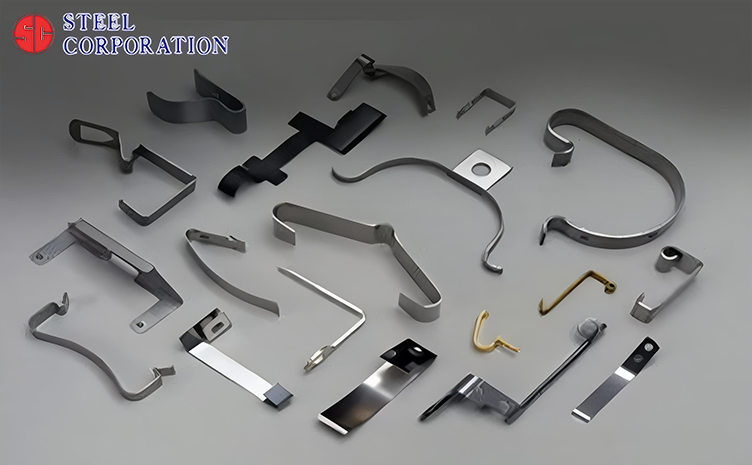

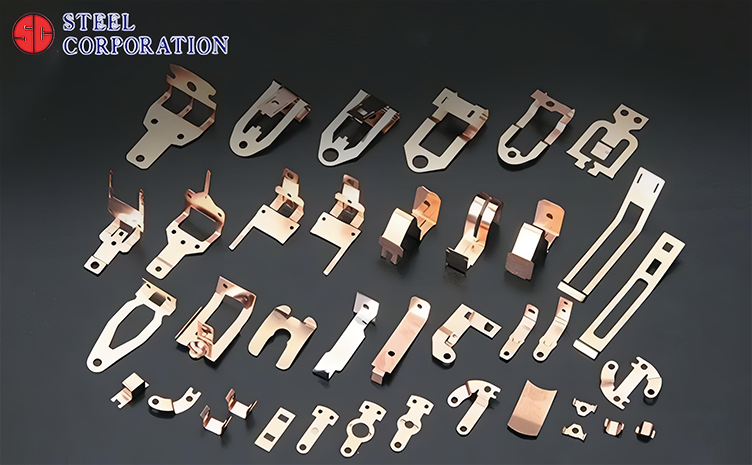

APPLICATIONS

. .
  PEN CLIPS   HAIR PINS
  SEAT BELT PARTS, BUCKLES   AGRICULTURE SICKLES
  MACHETES   AUTOMOTIVE PARTS
  CHAINS AND LINKS   SHOE SHANKS
  SAFETY SHOES TOES   FASTENERS
  WASHERS   HOSE CLAMPS
  VARIOUS TYPES OF CLAMPS   HOSE CLIPS
