Cold Rolled Annealed 16MnCr5

THIS IS A LOW CARBON STEEL WITH HIGH MANGANESE AND CHROME CONTENT. THIS ALLOWS OBJECTS MADE OF THIS STEEL TO RETURN TO THEIR ORIGINAL SHAPE DESPITE SIGNIFICANT BENDING OR TWISTING AFTER HARDENING AND TEMPERING.

It is supplied in a soft condition with 200Hv as the minimum hardness. It is also known as Case Hardening Steel and has a high resistance to wear and fracturing. We supply it against a specific request with a minimum order quantity and lead time for delivery depending on the requirement.
This grade of steel strip is used where fatigue values and elastic limits are not critical, and is used for applications in which high strength, hardness and wear resistance are important. This grade of steel strips has good forming, blanking and bending properties.

PROPERTIES


Properties of 16MNCR5 grade cold rolled annealed steel strips Chemical composition by weight
CARBON 0.14 - 0.19%
MANGANESE 1.00 - 1.30%
SILICON 0.40% Max
SULPHUR 0.035% Max
PHOSPHOROUS 0.035% Max
CHROMIUM 0.80 - 1.10%
Mechanical Properties of 16MNCR5 grade Hardened and Tempered Steel Strips.
HARDNESS 160 HV Max (Annealed Soft)
SURFACE FINISH Matt Finish - Ra 1.60 Micron Max

FORM OF SUPPLY

.
  Usually in coils, thicker strips can also be supplied in cut to length and levelled strips
  Edges are slitted
  Coil ID 300-500mm as per mutual agreement with buyer
  Coil weight as per mutual understanding with buyer
  Surface finish is bright suitable for electroplating

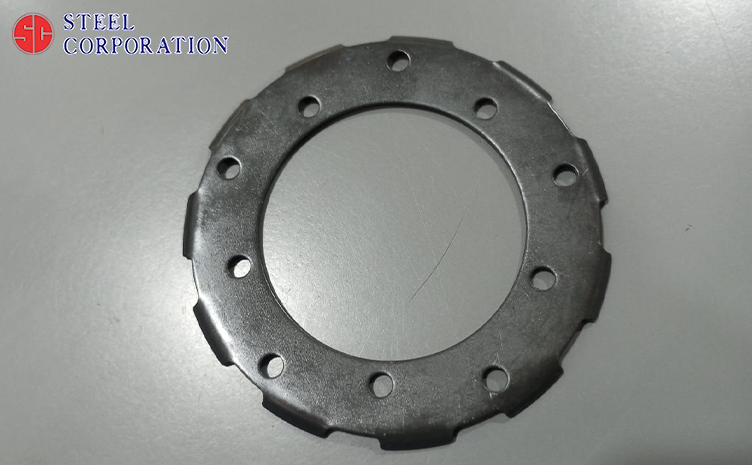

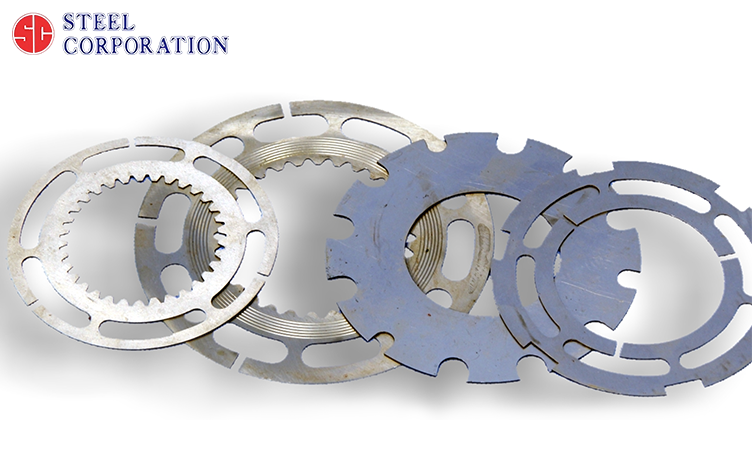

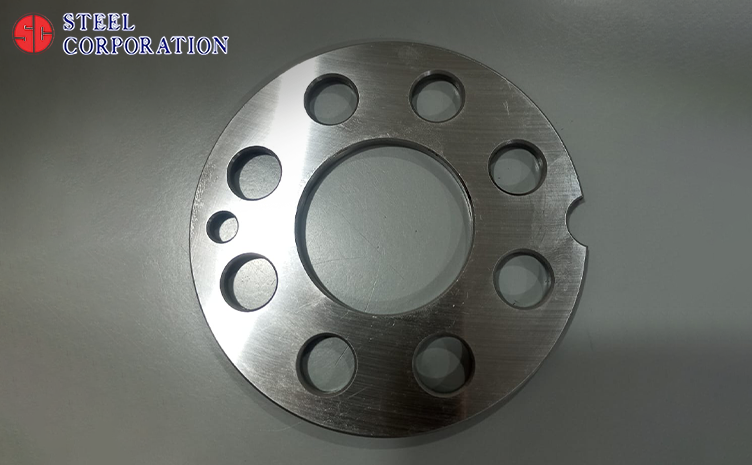

APPLICATIONS

. .
  GEARS & SPROCKETS   CASE HARDENING PARTS
  GEARS   SPINDLES
  PUMPS   CLUTCH PLATES
